Item NO.:
MI-300/MI-350/MI-400 HM-300/HM-350/HM-400
-
Brand :
Soliswatt
-
Power :
300W| 3500W| 400W
-
Solar Module :
405W/472W/540W
-
Application :
On Grid Residential /Commercial Solar System
-
Warranty :
12 Years
Product Description
For the entire photovoltaic system, the component (solar panel) is only one link, and the micro-inverter undertakes the key task of converting natural energy into safe and usable electrical energy.Single-phase micro-inverters are mostly suitable for residential or small commercial projects.
Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. With Soliswatt, get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.
Advantage of Microinverter
1.Micro inverters are connected to solar panels,Each micro-inverter connects four components at the same time
2.The micro-inverter converts the direct current output from the solar panel into the daily usable alternating current

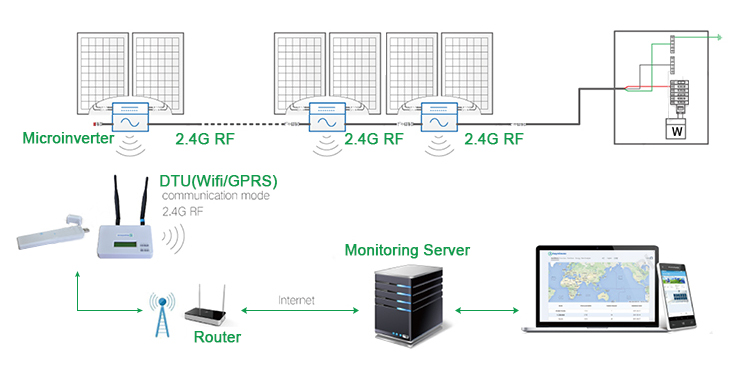

3.The data collector (DTU) is used to collect the operating data of the micro-inverter, and the power generation can be monitored on the S-Miles Cloud platform
4.HM micro-inverters can provide reactive power compensation and are equipped with external antennas to enhance communication.
1-in-1
HM-300/350/400 |
2-in-1
HM-600/700/800 |

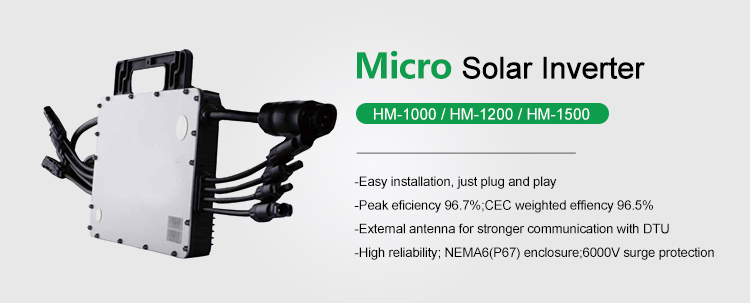

4-in-1
HM-1000/1200/1500 |
|
Commonly used module power (W) |
405/472/540 |
405/472/540 |
337/405/506 |
|
Maximum input voltage (V) |
60 |
60 |
60 |
|
Maximum input current (A) |
11.5/11.5/12.5 |
2×11.5/2×11.5/2×12.5 |
4×10.5/4×11.5/4×11.5 |
|
Rated output power (VA) |
300/350/400 |
600/700/800 |
1000/1200/1500 |
|
Maximum units per branch |
16/14/12 |
8/7/6 |
5/4/3 |
|
CEC peak efficiency |
96.70% |
96.70% |
96.70% |
|
Enclosure rating |
IP67 |
IP67 |
IP67 |
|
Warranty |
12 years standard |
12 years standard |
12 years standard |
1-in-1
HM-300T/350T/400T |
2-in-1
HM-600T/700T/800T |
4-in-1
HM-1000T/1200T/1500T |
|
Commonly used module power (W) |
405/472/540 |
405/472/540 |
337/405/506 |
|
Maximum input voltage (V) |
60 |
60 |
60 |
|
Maximum input current (A) |
11.5/11.5/12.5 |
2×11.5/2×11.5/2×12.5 |
4×10.5/4×10.5/4×11.5 |
|
Rated output power (VA) |
300/350/400 |
600/700/800 |
1000/1200/1500 |
|
Maximum units per 10AWG branch
|
24/21/18 |
12/10/9 |
7/6/4 |
|
