Off Grid | 2000VA-5000VA | Single Phase. Growatt SPF 2000-5000TL HVM series is off grid solar inverter specially designed for use with batteries energy storage in the home PV Power System
-
Item NO.:
SPF 2000-5000TL HVM
-
Brand :
Growatt
-
Power :
2000VA-5000VA
-
AC Voltage :
230VAC ± 5% @ 50/60Hz
-
Application :
Off Grid/Battery Energy Storage Residential Solar System
-
Warranty :
5 Years
Product Description

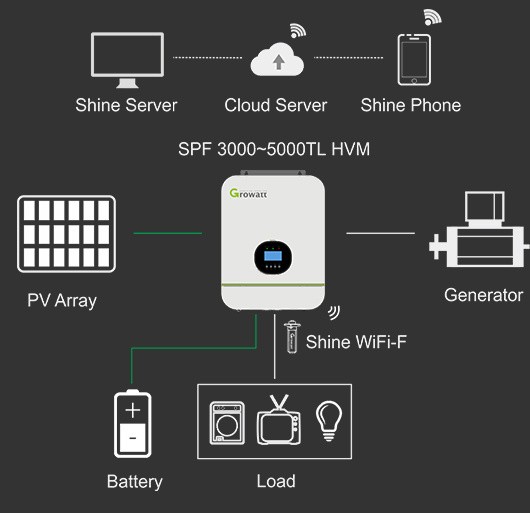

Off Grid / Stand-Alone Solar Inverter System
An off-grid solar system is not connected to the electricity grid and requires battery storage. Off-grid solar systems must be designed correctly in order to generate enough power throughout the year and have the necessary battery capacity to meet the installed locations electrical energy requirements or demand.
A backup generator or alternative back up power source may be necessary to supplement your electrical demand and recharge the batteries during times when the batteries are inadequately charged due to very bad weather patches or other unforeseen circumstances. We recommend that the size of the backup power source should be adequate to supply energy to your house and charge your batteries at the same time.
Features
Growatt SPF 2000-5000TL HVM series off grid solar inverter is integrated with a MPPT solar charge controller. Transformerless design provides reliable power conversion in compact size. The Growatt SPF5000TL HVM series inverter is a specially designed inverter for isolated installations that integrates an MPPT solar charge controller. Maximum output power of 5000W. It can run on 48V lithium or lead acid batteries.
This inverter incorporates a 60A charger that allows the battery to be charged from the grid or from a generator.
Leading Features
• Integrated MPPT charge controller
• Battery charging priority can be set
• Load supply priority can be set
• Optional WIFI/ GPRS remote monitoring
• Parallel operation up to 6 units only available for 4-5KVA

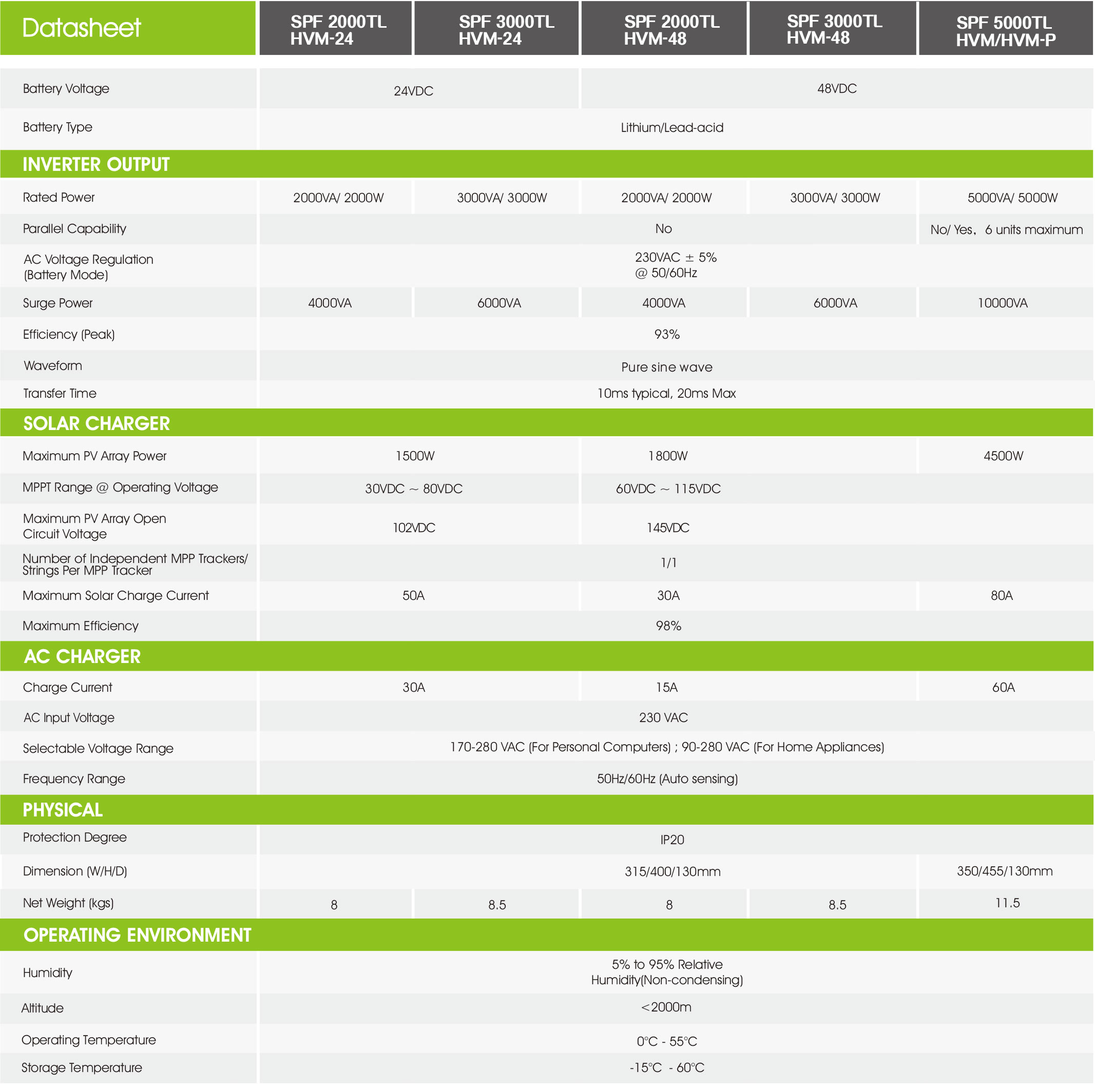

Technical Parameters
