Hybrid Inverter | 3.0-6.0KW | Single Phase | 2 MPPT|. Fox Ess series is grid-tied solar inverter specially designed for use with  batteries energy storage in the home PV Power System

• Item NO.:

          H1-3.0-E | H1-3.7-E | H1-4.6-E | H1-5.0-E | H1-6.0-E

• Brand :

          Fox Ess

• Power :

          3K/3.7K/4.6K/5K/6K

• AC Voltage :

          220/230/240 (180 to 270)

• Application :

          On Grid/Battery Energy Storage Residential Solar System

• Warranty :

          5-10 Years

Product Description

Hybrid Inverter System Working Diagram

The hybrid solar inverter has both the capability of converting DC power to AC, and using DC power to charge a DC battery (which is why in the image to the right you can see two sets of cable entry points). This is ideal if a solar system owner is hoping to install a DC battery, or if they wish to keep their options open to installing a DC battery in the future (without changing their inverter).

Features

Fox ESS’s hybrid inverter has options up to 6kW meaning it can support solar panel arrays of up to around 8kW. Their largest 6kW hybrid inverter can output solar electricity and discharge the battery at 6kW providing enough power for most households – even with lots of appliances running simultaneously.  Like their other residential solar inverters the hybrid inverter is IP65 rated making it suitable for indoors or outdoors installation

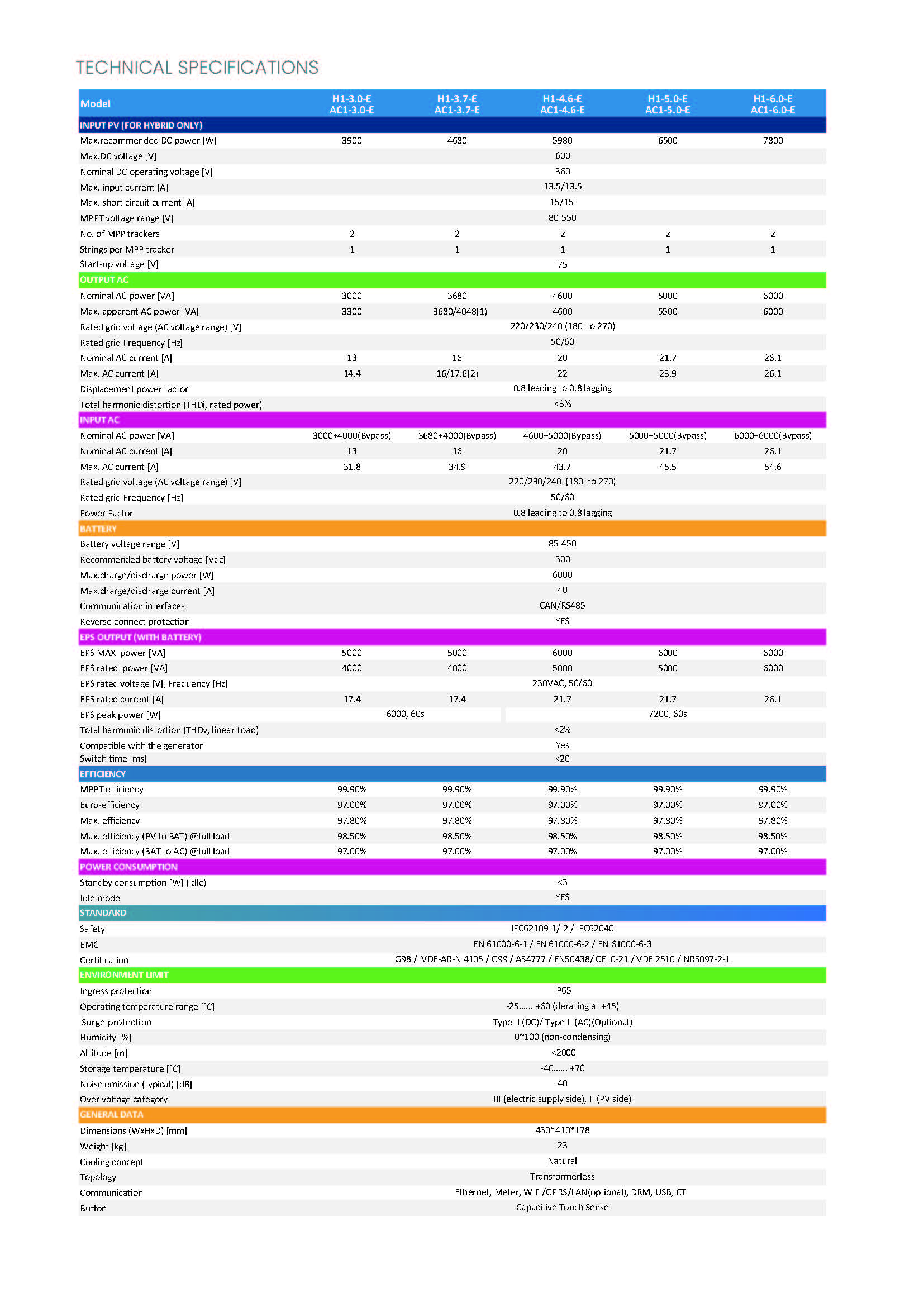

Technical Parameters

Hybrid Energy Storage Inverter Leading Features

Max. efficiency is 98.4%

Intelligent EMS function

Support three-phase imbalance on backup output port

2 MPPT and 4 DC input;

Max 26A DC input current

Time of use shifting and peak shaving capabilities to grid

Soliswatt supply optional arc fault circuit interrupter (AFCI) function

Remotely control and upgrade any selected inverter

Power supply can be switched automatically and switching time within 40ms

Ensures AC backup for up to 10kW of continuous power and 16kVA of peak power

24-hour fully intelligent energy management, Real-time grasp of PV plant status

Remotely control & upgrade function, making digital power plant maintenance at your fingertips
