  Product details Home - Products Class
3-15kW I Three Phase | 2MPPTs
Growatt MOD 5000TL3-X Three Phase Inverter 5000kW Max. efficiency 98.6% OLED and Touch button Type II SPD on DC and AC side String Monitoring AFCI optional
Online service
Online inquiries

On-grid Inverter | MOD3-15KTL3 | Three Phase | 2 MPPTs|MOD series is grid-tied solar inverter specially designed for use with home PV Power System

  • Item NO.:

             MOD 3000TL3-X | MOD 4000TL3-X | MOD 5000TL3-X | MOD 6000TL3-X | MOD 7000TL3-X | MOD 8000TL3-X | MOD 9000TL3-X
  • Brand :

  • Power :

             4500W | 6000W | 7500W | 9000W | 10500W | 12000W | 13500W
  • AC Voltage :

             220V/380V, 230V/400V (340-440V) | 50/60 Hz (45-55Hz/55-65 Hz)
  • Application :

             On Grid
  • Warranty :

             5-10 Years

Product Description

The Growatt MOD generation of photovoltaic inverters is ideal for small installations as it is compact and easy to install, for indoor applications. The Growatt Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.


The inverters have a natural cooling system thus making them extremely silent compared to other inverters. There are further fewer moving parts lowering the chance of malfunction and decreasing overall maintenance.

Key Features

  • Maximum efficiency of 98.6%
  • Compact design
  • Touch key& OLED display
  • Flexible monitoring options
  • AFCI (optional)
  • WIFI (optional)
  • With DC Safety Unit
  • Type II SPD on DC and AC side
  • Protection degree: IP66
  • 10-year warranty

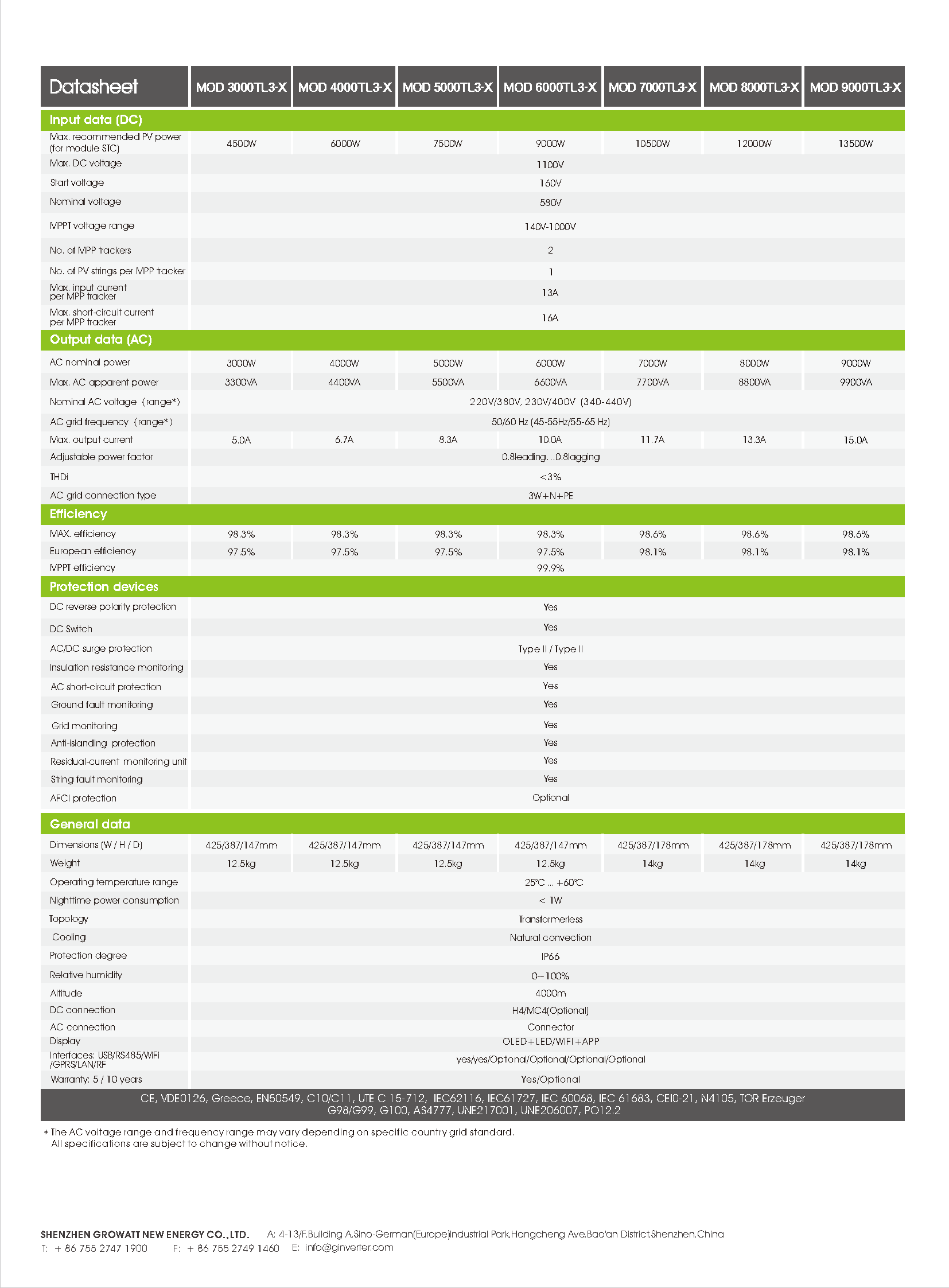

Technical Parameters
