Hybrid Inverter | EH Series 3.6-6.0KW | Single Phase | 2 MPPT|High Voltage.EH series  is grid-tied solar inverter specially designed for use with high-voltage batteries in the home PV Power System

• Item NO.:

       GW3600-EH| GW5000-EH| 6000-EH

• Brand :

       GoodWe

• Power :

       3600W| 5000W| 6000W

• AC Voltage :

       230VAC

• Application :

       On Grid/Battery Energy Storage Residential Solar System

• Warranty :

       5-10 Years

Product Description

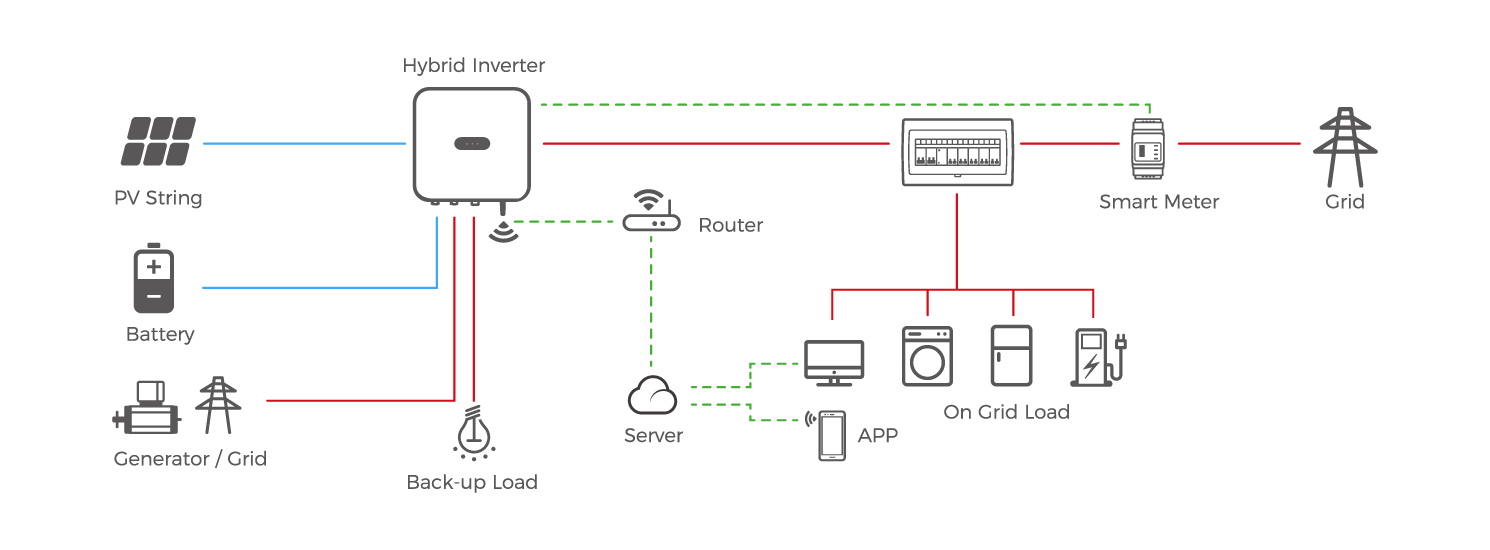

Hybrid Inverter System Working Diagram

3.6-6KW | Single Phase Storage Inverter | 2 MPPT | High Voltage Battery

The GoodWe EH Series is a single-phase, grid-tied solar inverter specially designed for use with high-voltage batteries in the home. The inverter features a “Battery Ready” option for users who might wish to eventually acquire a full energy storage solution; by simply purchasing an activation code, the EH can easily be upgraded to a complete ESS system. The communication cables come pre-wired, reducing installation time significantly and the Plug & Play AC connector also makes operation and maintenance significantly more convenient.
The EH is compatible with high voltage batteries (85-450V) and can automatically switch to back-up mode in less than 0.01s (UPS level), ensuring that critical loads experience no interruption. With a power deviation lower than 20W, this inverter is designed to maximize self-consumption. In addition, the fact that it takes less than 9 seconds to switch from grid to PV to supply power for heavy loads helps users avoid expensive intakes from the grid.

85~450V WIDE BATTERY VOLTAGE RANGE

Compatible with various high voltage batteries and offers flexibility and affordability to fulfill various customer demands. Currently, the EH Series can work with BYD and Pylontech high voltage batteries.

MAXIMIZE SELF-CONSUMPTION

The power deviation from the inverter’s AC output to load consumption can be as low as 20W, maximizing solar energy consumption. Besides, it takes less than 9s to switch from grid power supply to PV supply when heavy loads start up, reducing expensive power intakes from the grid.

Pre-wired, Plug & Play

Pre-wired communication cables minimise installation time. The Plug & Play AC connector also makes operation and maintenance significantly more convenient.

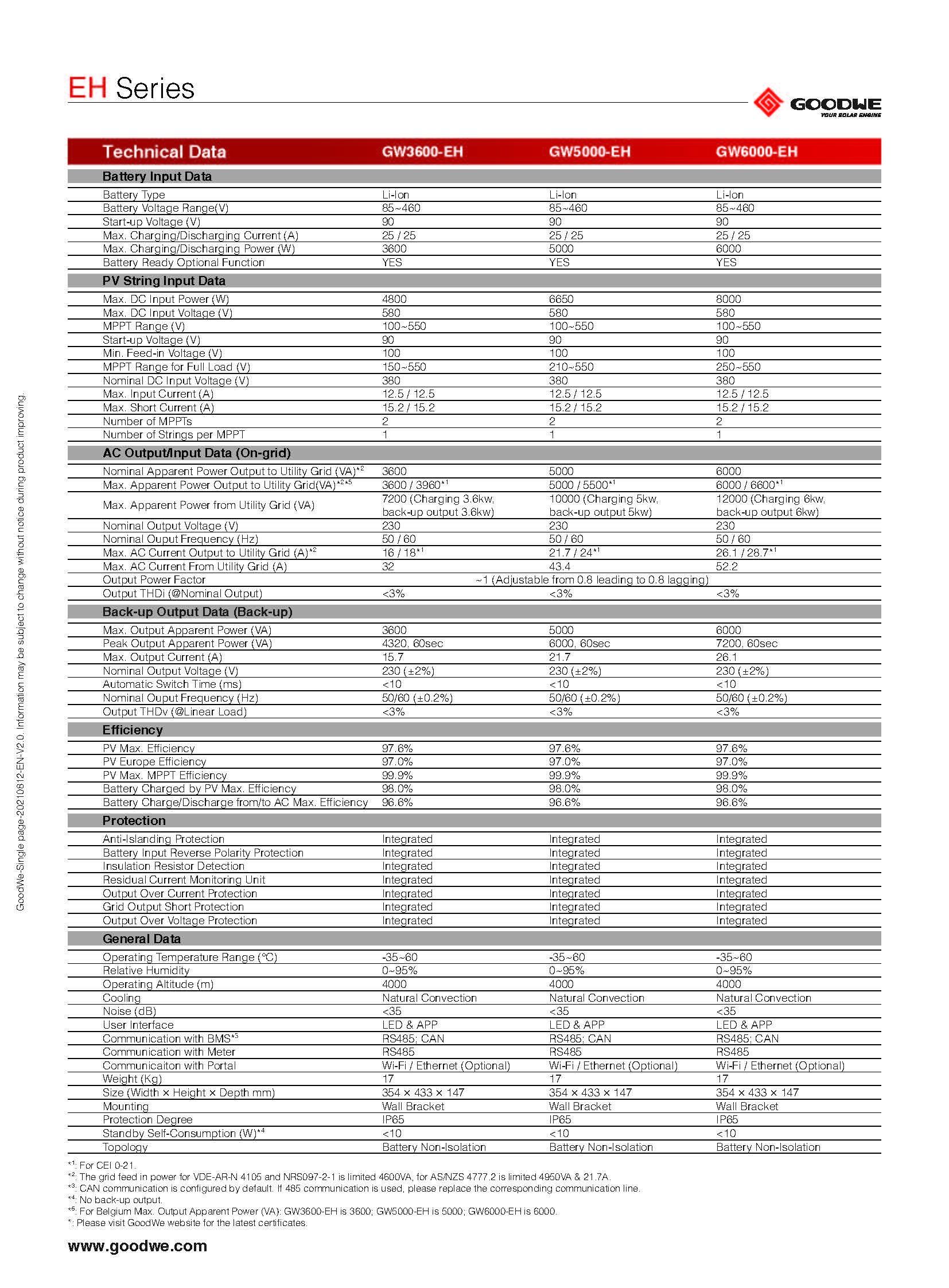

Technical Parameters
