Item NO.:
GW4K-DT| GW5K-DT| GW6K-DT| GW8K-DT| GW10KT-DT| GW12KT-DT| GW15KT-DT
-
Brand :
Goodwe
-
Power :
4000W| 5000W| 6000W| 8000W| 10000W| 12000W| 15000W
-
AC Voltage :
400VAC, 3L/N/PE
-
Application :
On Grid Residential Solar System
-
Warranty :
5-10 Years
Product Description

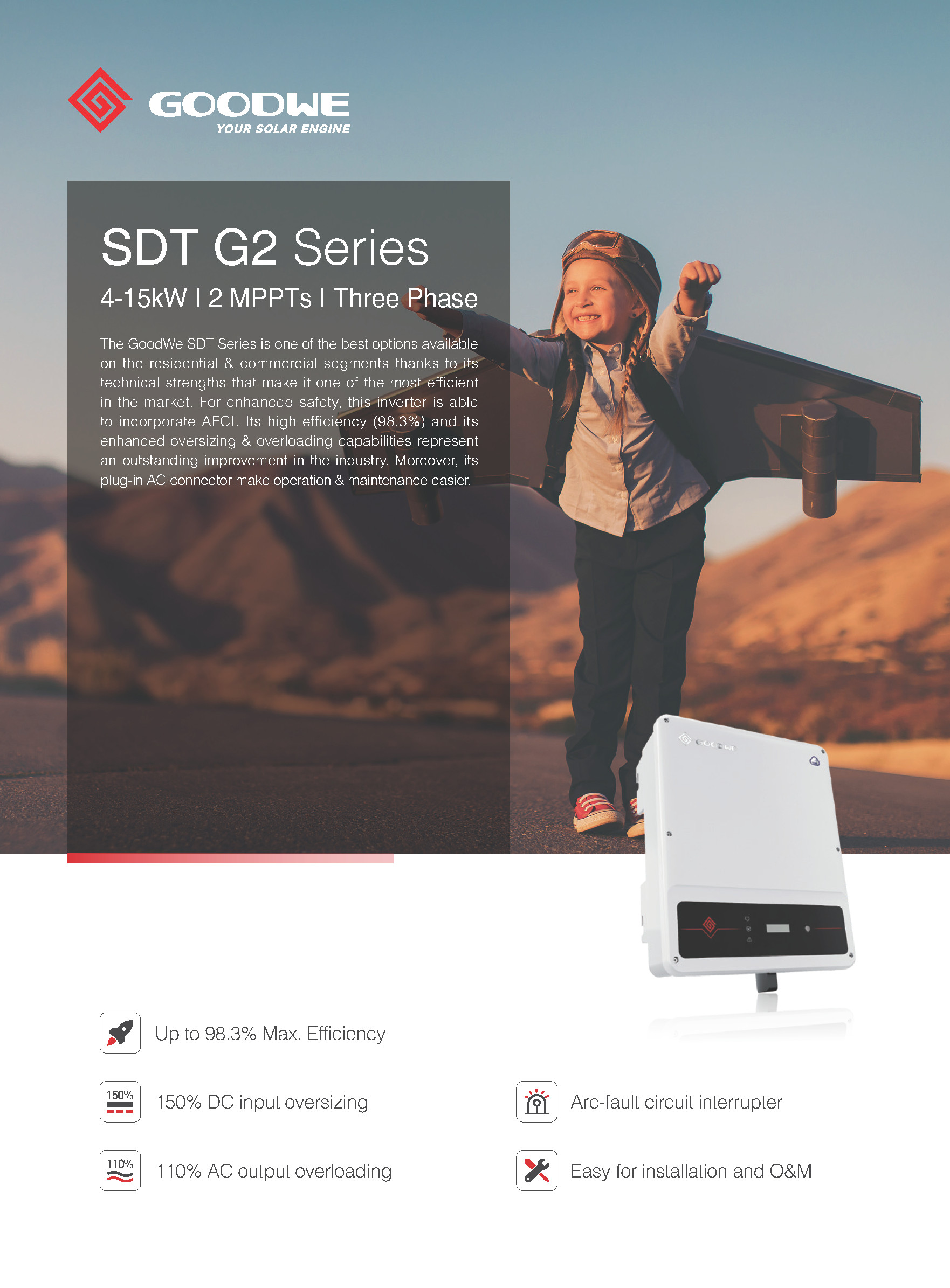

The SDT G2 series of inverter from GoodWe is one of the best options available in the residential & commercial sectors owing to its technical strengths, which make it one of the most productive inverters in the market. Because of its high efficiency of (98.3%), the enhanced oversizing & overloading capabilities and the fact that it does not require a null line for installation, SDT G2 represents an outstanding improvement in the industry.
Built-In Anti-Reverse Current
In regions where solar power is not allowed to be reverberated to the grid, installers can easily set an export limit through the GoodWe app with one simple-click, as SDT G2 has integrated a built-in anti-reverse current function into the inverter.
Arc-fault Circuit Interrupter
Safety First! With AFCI, the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. GoodWe does not only deliver efficiency, reliability, but security as well.
150% DC Input Oversizing &110% AC Output Overloading
2nd generation of GoodWe SDT series is downsized by more than 150%. However, being compatible with bifacial modules, the competency of this half size successor is considerably improved. With 150% DC input oversizing, 110% AC output overloading capability, it drives your inverter to its full capacity by adding extra reflections from the backside of bifacial panels, to increase your power output under low solar radiation conditions.
Smart Monitoring System

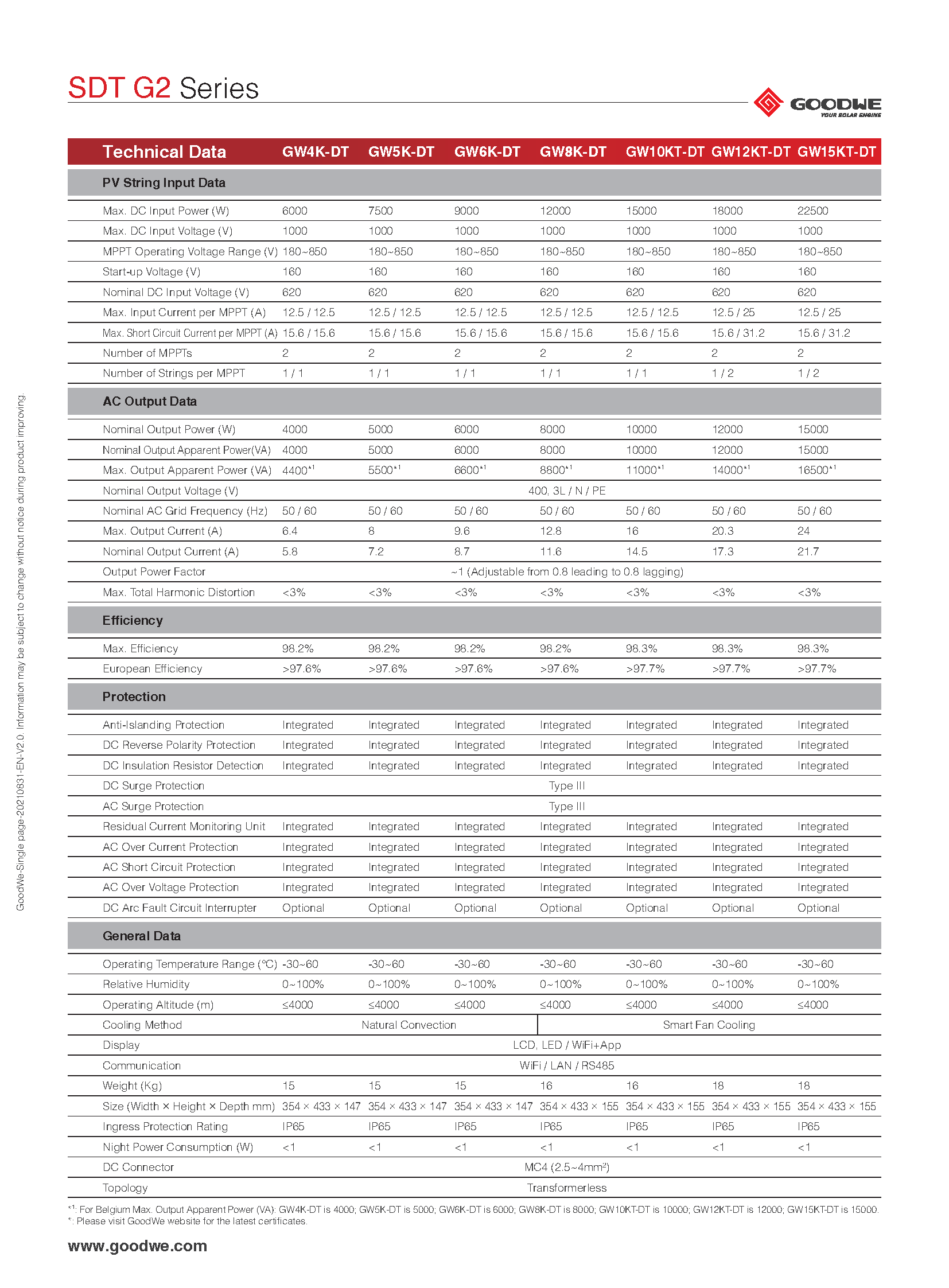

Technical Parameters
