| 520W-550W 182mm Bifacial 72 Half Cut |

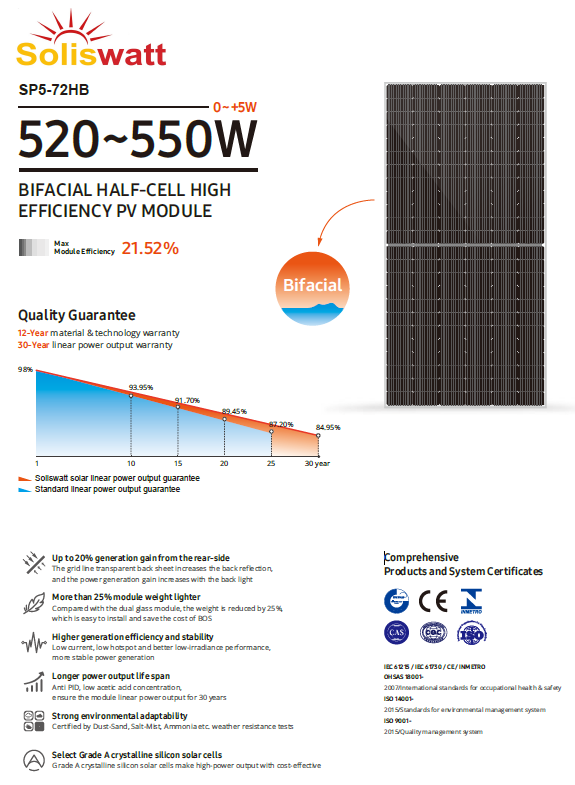

| Soliswatt 520~550W Bifacial Mono High Efficiency Solar Panels

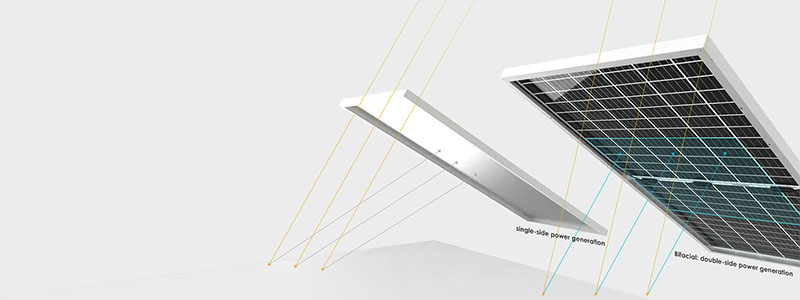

Transparent Backsheet technology Up to 25% power gain depending on albedo and PV system design.
520/525/530/535/540/545/550w Bifacial Half-cell High Efficiency PV Module |
|
144 cells Mono Bifacial Half-cell PERC solar panel 520~550W Soliswatt 182mm wafer with A Grade for on-grid & off-grid & hybrid residential & industrial use for PV Power System
-
Item NO.:
SP5-72HB-520-550M
-
Solar Cell :
PERC 182mm
-
Number Of Cells :
144(6*24)
-
Power Range :
520w-550w
-

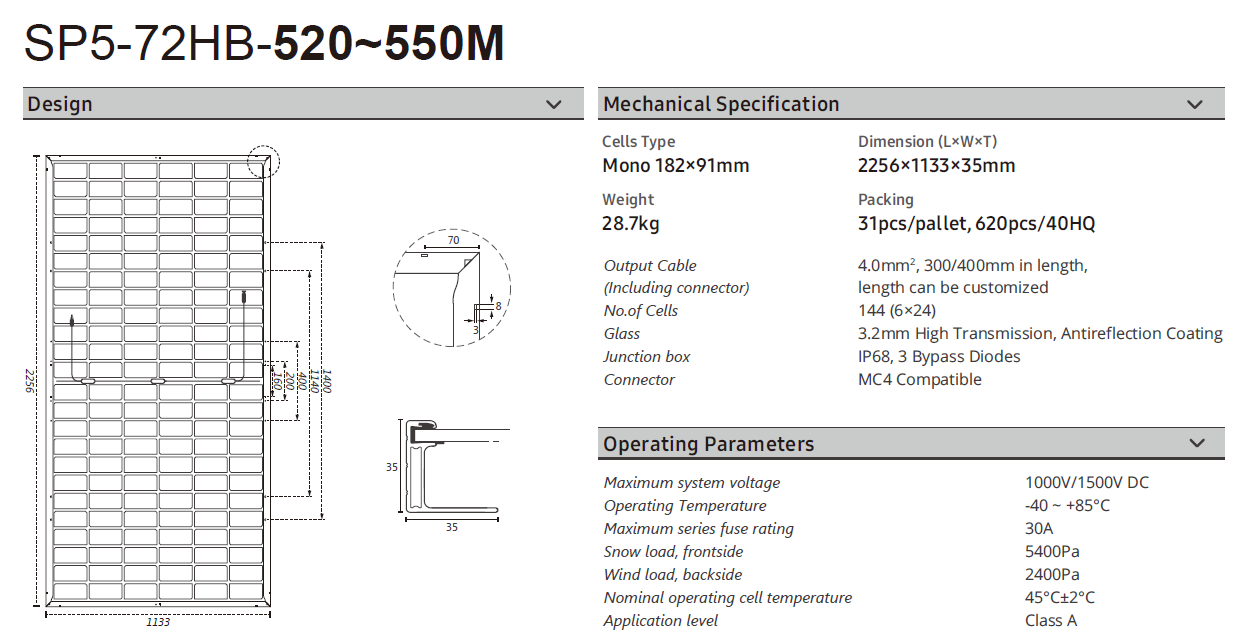

Size :
2256*1133*35mm
-
Certificate :
TUV, UL, CEC, CE
-
Lead Time :
10 Days
-
Payment :
T/T, L/C, Paypal, Western Union
-
Warranty :
25 Years
Product Description

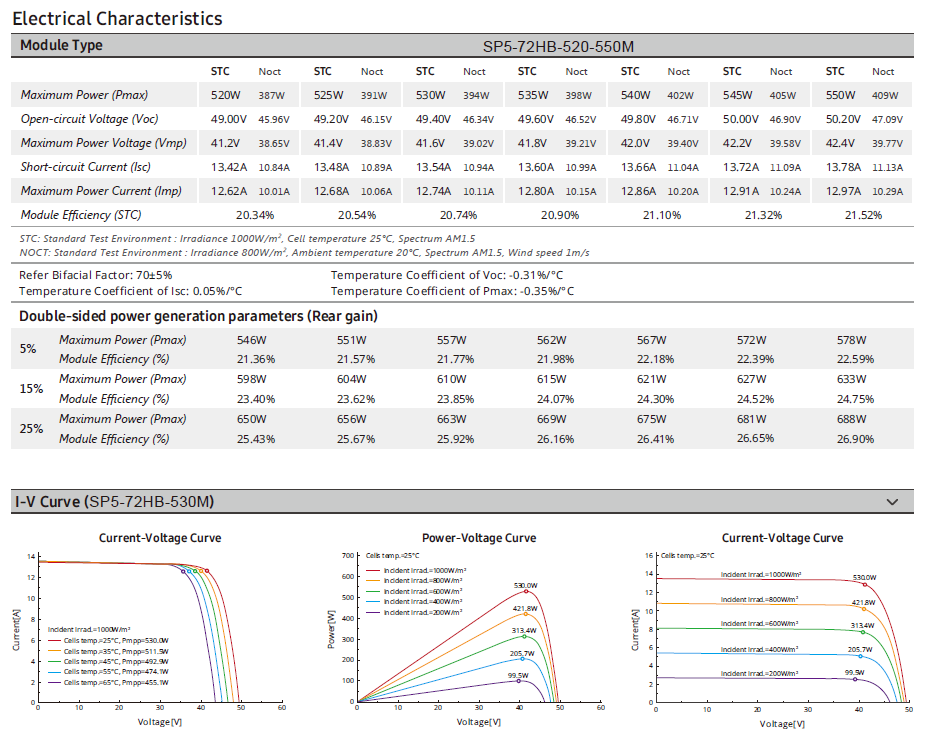

Electrical Characteristics
Features & Benefits
First-class solar panel warranty Reliable quality
12-Year material & technology warranty
-
25-Year linear power output warranty
-
Soliswatt solar linear power output guarantee
-
Standard linear power output guarantee
-
Max Module Efficiency21.27%.
-
-

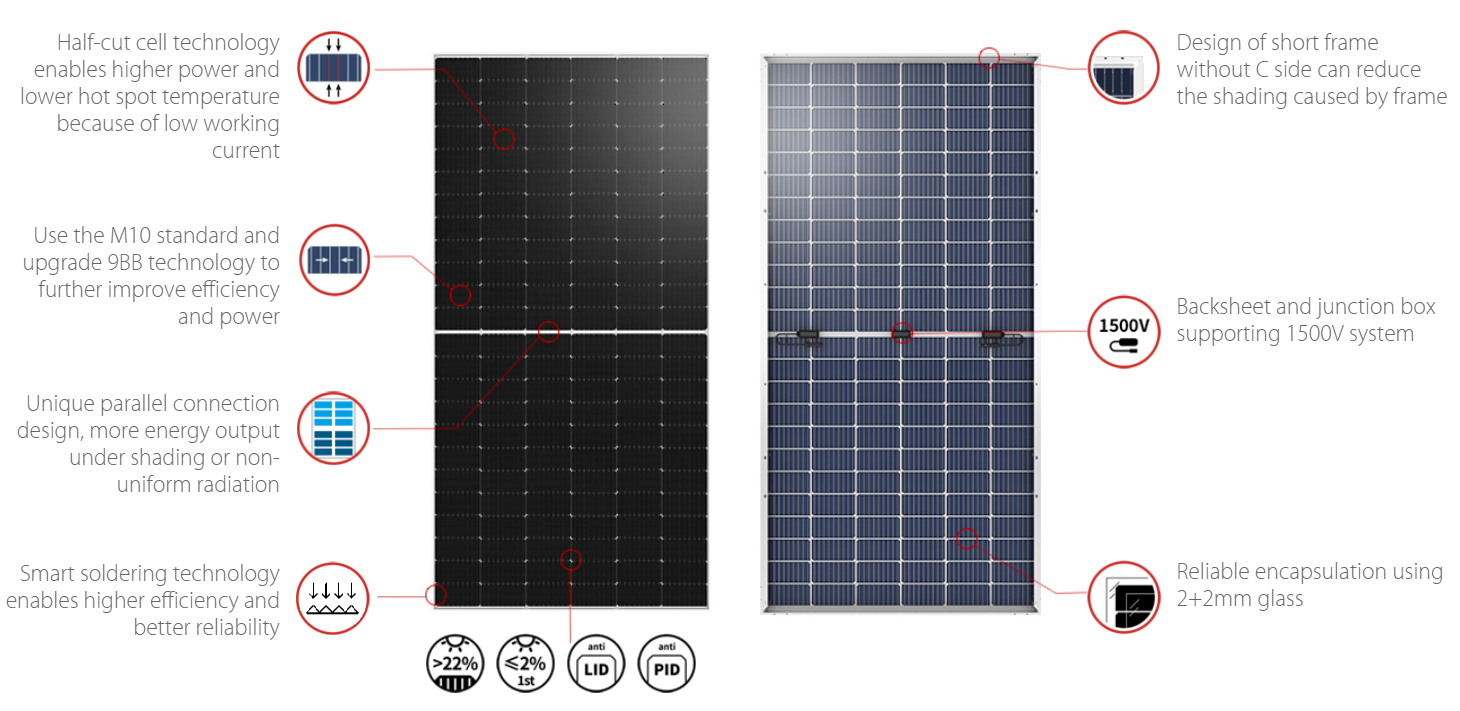

Product Characteristics
-
More Power Generation Larger size of light receiving area and higher module conversion efficiency
-
-
10 Busbar Technology Higher power collection density improves power generation
-
-
Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation:
first year 2%, 0.55% per year from 2-25
-
-
Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss
-
-
Process Optimized and Upgraded Lower risk of hot spot and stronger anti-PID ablity
-
-
Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and
enhanced mechanical load: wind load (2400 Pascal) and snow load (5400 Pascal)
-
Packing&Delivery
31pcs/pallet, 620pcs/40HQ
|
|
|
|
