475W-550W 182mm 66 Half Cut
Mono Half-Cell 66X10-475~505W Solar Panels 132 cells 182mm wafer

Online service
Online inquiries

 Detailed
        • Features & Benefits

Soliswatt 132 cells Mono Half-Cut 182mm PERC solar panel SP5-66H-475-505M 475~505W with A Grade for residential and public rooftop &ground mounting & industrial   PV Power System

  • Item NO.:

       SP5-66H-475-505M
  • Solar Cell :

       PERC 182mm
  • Number Of Cells :

       132(6*22)
  • Power Range :

       475w-505w

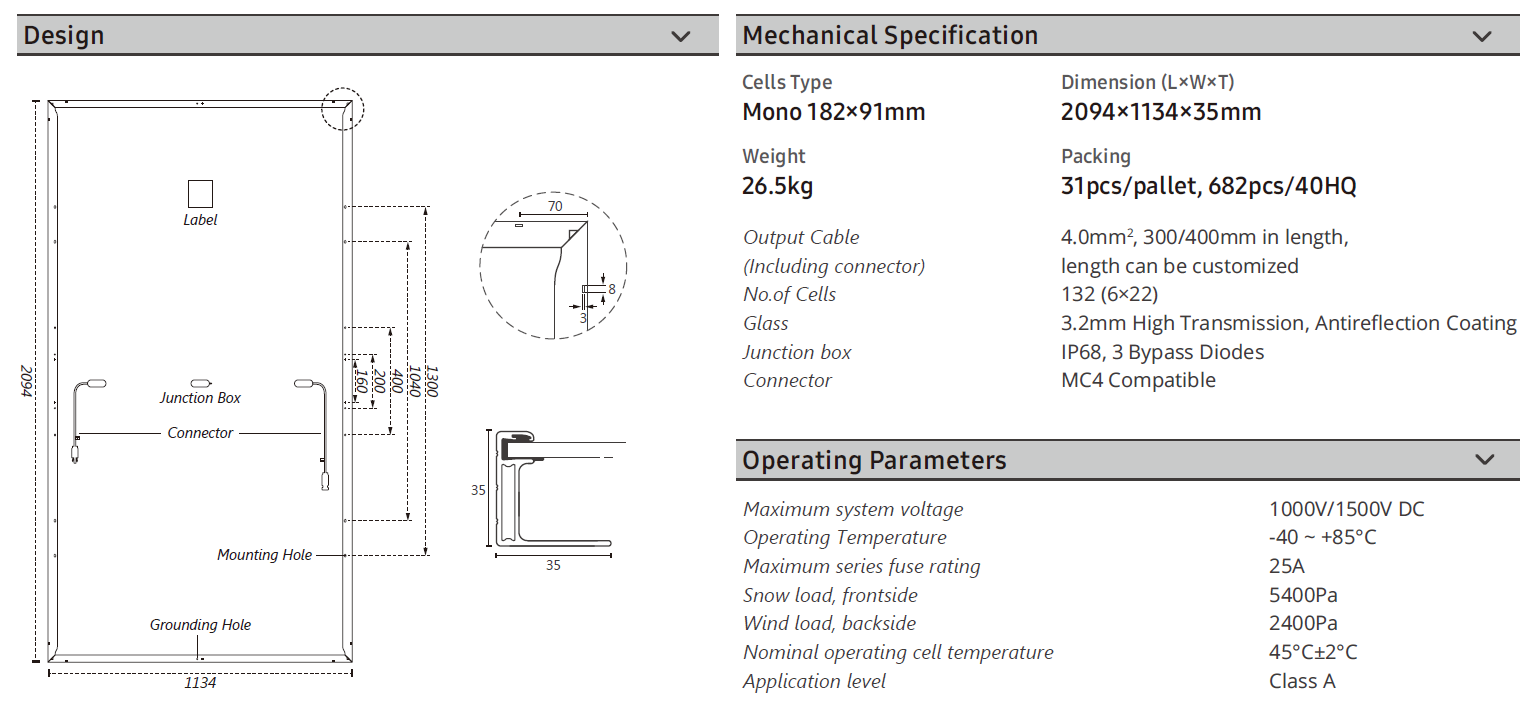

  • Size :

       2094*1134*35mm
  • Certificate :

       TUV, UL, CEC, CE
  • Lead Time :

       10 Days
  • Payment :

       T/T, L/C, Paypal, Western Union
  • Warranty :

       25 Years

Product Description





Electrical Characteristics

Module Type SP5-66H-475~505M
Maximum Power (Pmax) 475W 480W 485W 490W 495W 500W 505W
Open-circuit Voltage (Voc) 44.8W 45.0W 45.2W 45.4W 45.6W 45.8W 46.0W
Maximum Power Voltage (Vmp) 37.6V 37.9V 38.1V 38.3V 38.5V 38.7V 38.9V
Short-circuit Current (Isc) 13.42V 13.48V 13.54V 13.60V 13.66V 13.72V 13.78V
Maximum Power Current (Imp) 12.62A 12.68A 12.74A 12.80A 12.86A 12.91A 12.97A
Module Efficiency(%) 20.00% 20.21% 20.42% 20.64% 20.85% 21.06% 21.27%
Power Tolerance 0~+5W
Temperature Coefficient of  Isc 0.05%/℃
Temperature Coefficient of  Voc —0.31%/℃
Temperature Coefficient of  Pmax —0.35%/℃
Standard Test Environment Irradiance 1000W/m², Cell Temperature 25℃,Spectrum AM 1.5

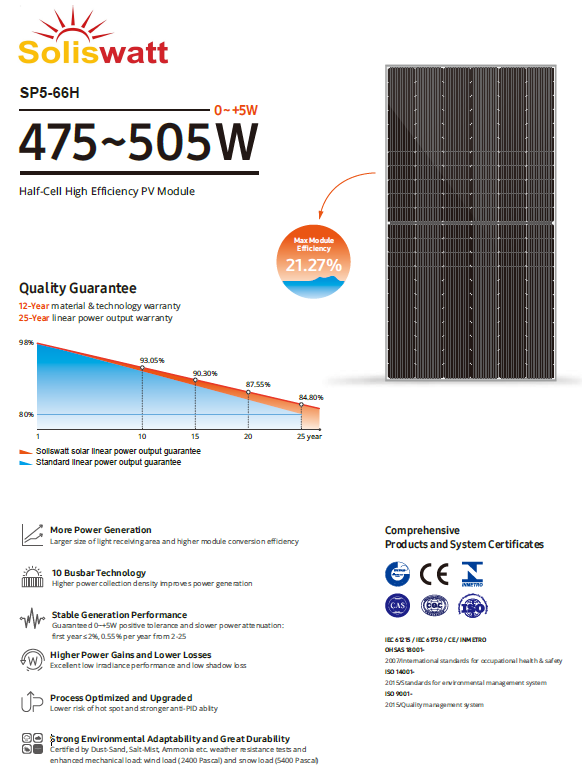

Features & Benefits

First-class solar panel warranty Reliable quality

12-Year material & technology warranty

  • 25-Year linear power output warranty
  • Soliswatt solar linear power output guarantee
  • Standard linear power output guarantee
  • Max Module Efficiency21.27%.
  •

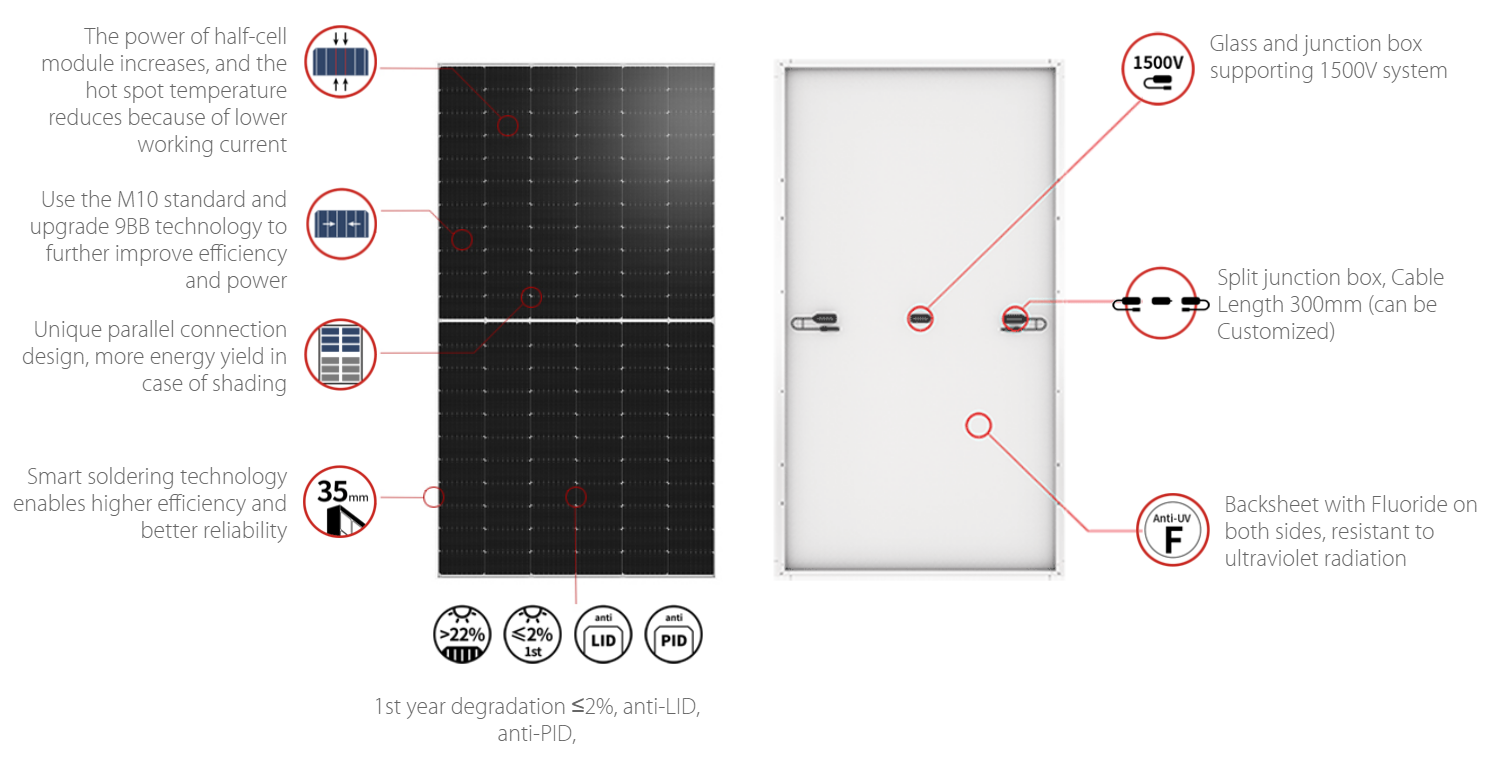

  • Product Characteristics
    • More Power Generation   Larger size of light receiving area and higher module conversion efficiency
    •
    • 10 Busbar Technology   Higher power collection density improves power generation
    •
    • Stable Generation Performance   Guaranteed 0~+5W positive tolerance and slower power attenuation:
      first year 2%, 0.55% per year from 2-25
    •
    • Higher Power Gains and Lower Losses   Excellent low irradiance performance and low shadow loss
    •
    • Process Optimized and Upgraded   Lower risk of hot spot and stronger anti-PID ablity
    •
    • Strong Environmental Adaptability and Great Durability   Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and
      enhanced mechanical load: wind load (2400 Pascal) and snow load (5400 Pascal)
    • Packing&Delivery

      31pcs/pallet, 744pcs/40HQ
