430W-460W 166mm 72 Half Cut

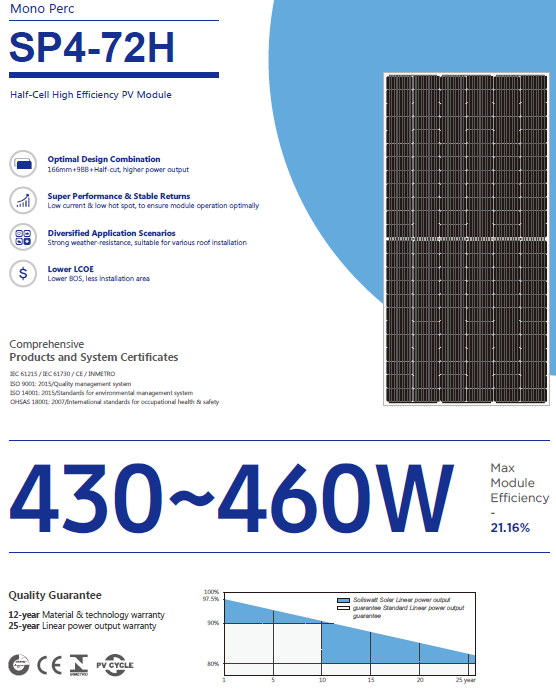

High Efficiency Solar Module 144 cells Half Cut Perc Solar Panel 430-460W 166mm A Grade Wafer
Online service
Online inquiries


        • Features & Benefits

144 cells 9BB half cell perc solar panel 430w/440w/445w/450w/455w/460w with A Grade for on-grid & off-grid & hybrid residential & industrial use for  PV Power System

  • Item NO.:

  • Solar Cell :

     Perc 166mm
  • Number Of Cells :

  • Power Range :

  • Size :

  • Certificate :

     TUV, UL, CEC, CE
  • Lead Time :

     10 Days
  • Payment :

     T/T, L/C, Paypal, Western Union
  • Warranty :

     25 Years

Product Description

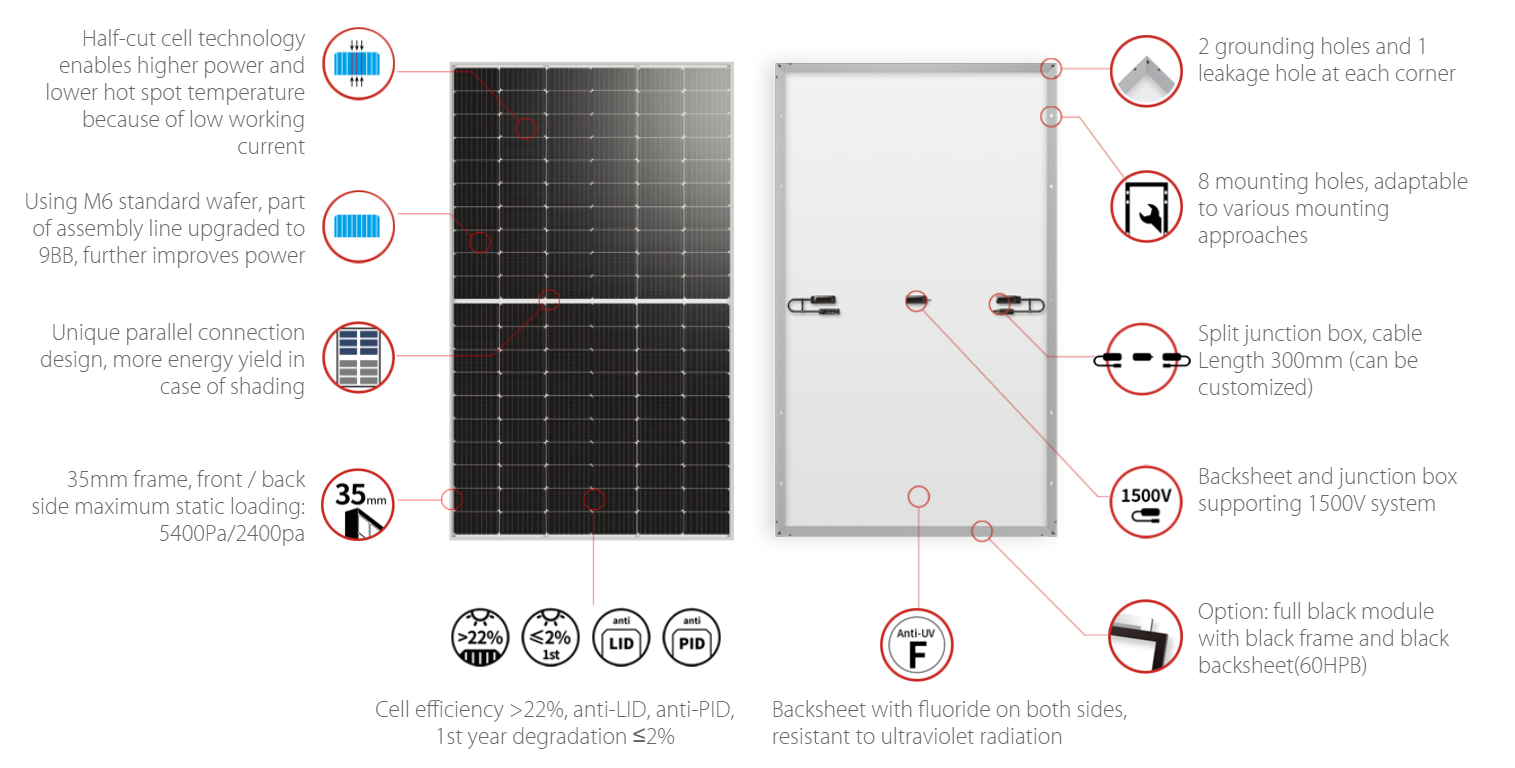

Perc Cell: The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Electrical Characteristics


Module Type SP4-70H-430M SP4-70H-435M SP4-70H-440M SP4-70H-445M SP4-70H-450M SP4-70H-455M SP4-70H-460M
Maximum Power (Pmax) 430W 435W 440W 445W 450W 455W 460
Open-circuit Voltage (Voc) 48.70V 48.85W 49.0V 49.15V 49.30V 49.45V 49.60V
Maximum Power Voltage (Vmp) 41.51V 41.66V 41.81V 41.96V 42.11V 42.26V 42.41V
Short-circuit Current (Isc) 11.23A 11.26V 11.29A 11.32A 11.35A 11.38A 11.41A
Maximum Power Current (Imp) 10.36A 10.44A 10.52A 10.61A 10.69A 10.77A 10.85A
Module Efficiency(%) 19.78% 20.01% 20.24% 20.47% 20.70% 20.93% 21.16%
Power Tolerance 0~+5W
Temperature Coefficient of  Isc 0.05%/
Temperature Coefficient of  Voc 0.31%/
Temperature Coefficient of  Pmax 0.35%/
Standard Test Environment Irradiance 1000W/m², Cell Temperature 25℃,Spectrum AM 1.5

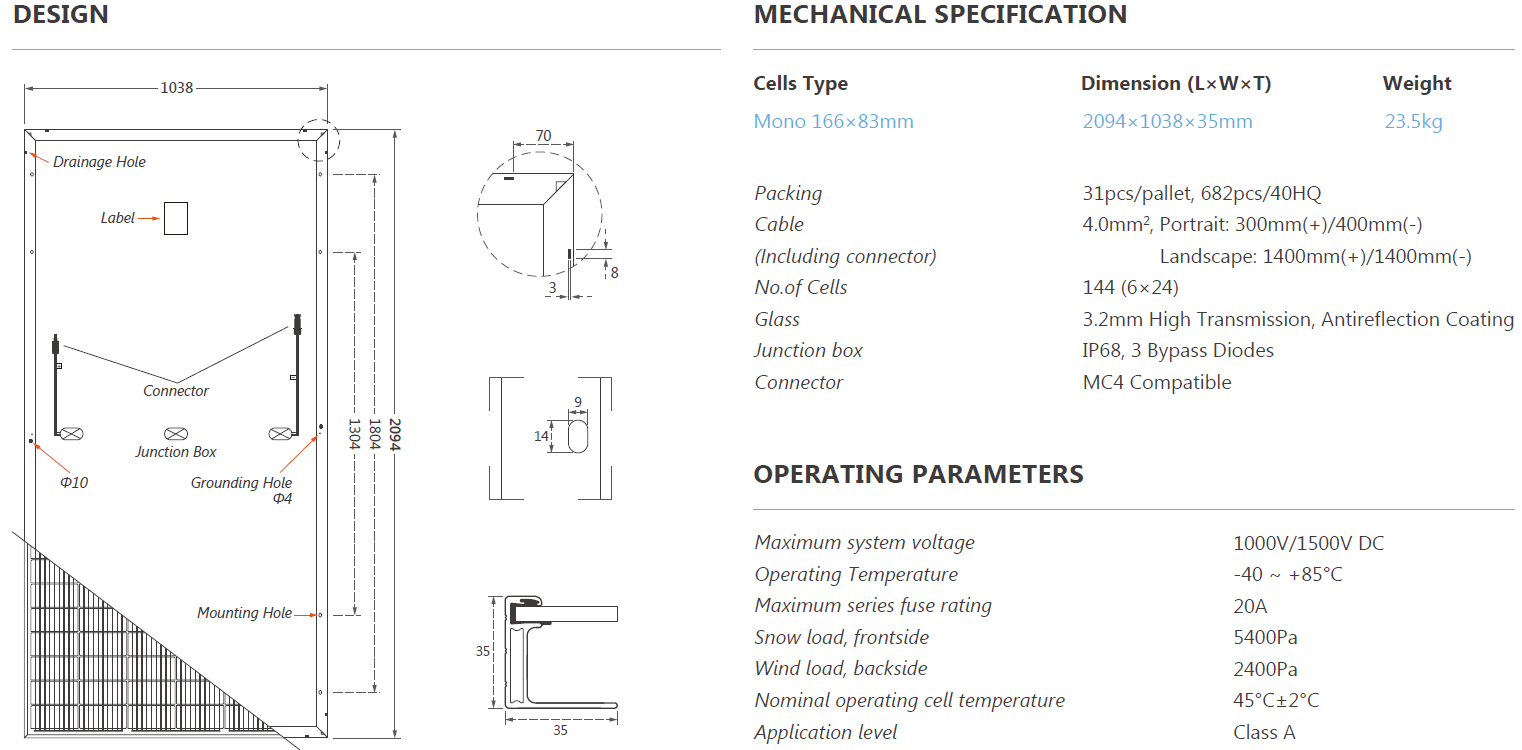

31pcs/pallet, 682pcs/40HQ



Solar cell Welding

Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar

Automatic typesetting machine                                                                                                                                                                                                                                  After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically typeset the battery string. High precision, high efficiency, low defect rate
