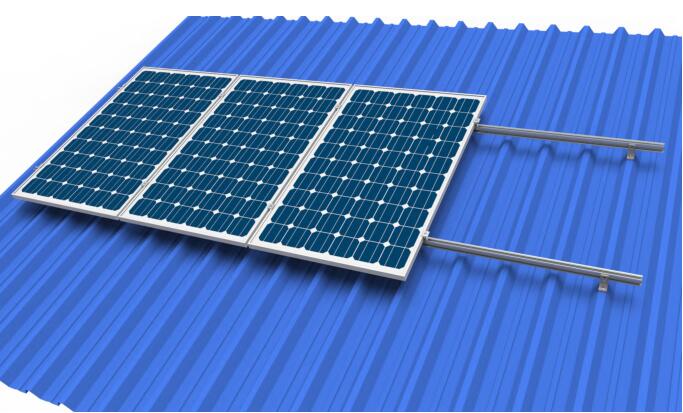

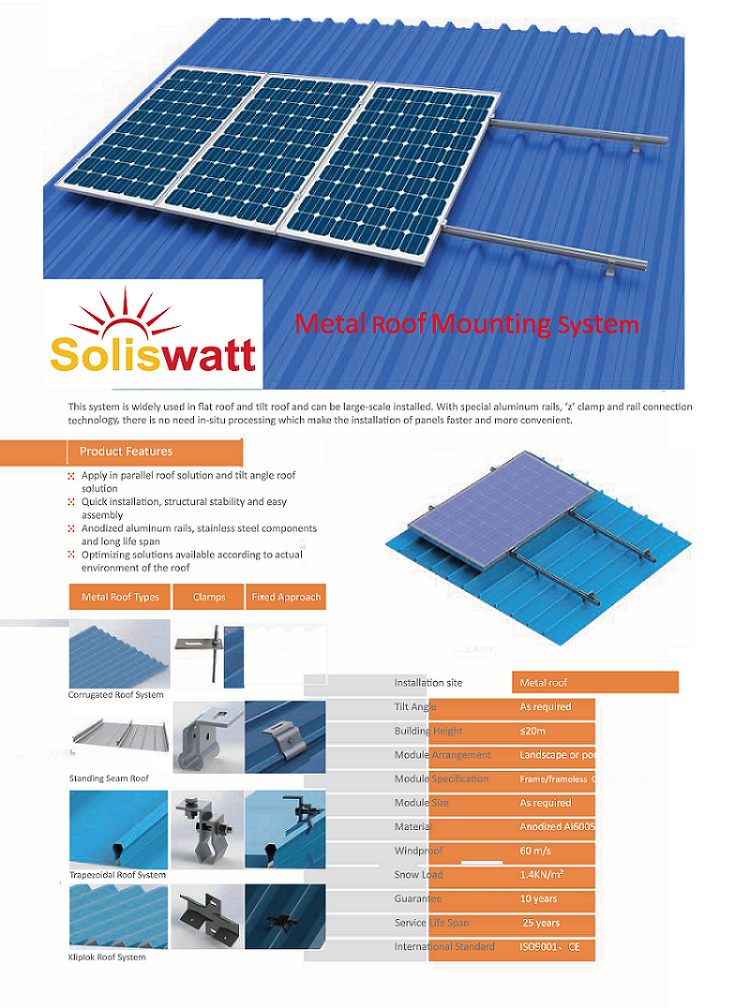

| Metal Roof Mounting System |
| Product Feature
1. Apply in parallel roof solution and tilt angle roof solution
2. Quick installation, structural stability and easy assembly
3. Anodized aluminum rails, stainless steel components and long life span
4. Optimizing solutions available according to actual environment of the roof |
|
Product Characteristics
This system is widely used in flat roof and tilt roof and can be large-scale installed. With special aluminum rails, ‘z’ clamp and rail connection technology, there is no need in-situ processing which make the installation of panels faster and more convenient.
 |
|
Installation site |
Metal roof |
|
Tilt Angle |
As required |
|
Building Height |
≤20m |
|
Module arrangement |
Portrait or landscape |
|
Module specification |
Frame/Frameless |
|
Crystalline/Tthin film |
|
Module size |
On requirement |
|
Material |
Anodized Al6005-T5& SUS 304 |
|
Snow load |
1.4KN/m2 |
|
Windproof |
60m/s |
|
Guarantee |
10 years |
|
Design life span |
25 years |
|
International standard |
ISO9001、CE |
|
|
|
|
