Mono 72cells 320-340W Solar Module
Mono Solar Panel 72cells Serial 320/325/330/335/340W 5BB PID Free Mono solar panel-72cells All black series as optional

Online service
Online inquiries

 Detailed

Product Characteristics



Model No.
SP-320M72 SP-325M72 SP-330M72 SP-335M72 SP-340M72
Warranty
Product Warranty 12 Years
Power Warranty 12 Years of 90% Output Power, 25 Years of 80.2% Output Power
Electrical Data at STC
Maximum Power (Pmax)
320 Wp 325 Wp 330 Wp 335 Wp 340 Wp
Voltage at Maximum Power (Vmpp)
37.15 V 37.46 V 37.65 V 37.88 V 38.02 V
Current at Maximum Power (Impp)
8.62 A 8.68 A 8.77 A 8.85 A 8.95 A
Open Circuit Voltage (Voc)
45.96 V 46.25 V 46.45 V 46.67 V 46.79 V
Short Circuit Current (Isc)
9.1 A 9.16 A 9.23 A 9.29 A 9.37 A
Panel Efficiency
16.49 % 16.75 % 17.01 % 17.26 % 17.52 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Temperature
47±2 °C 47±2 °C 47±2 °C 47±2 °C 47±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.4 %/°C
Temperature Coefficient of Voc -0.303 %/°C
Temperature Coefficient of Isc 0.053 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Series Fuse Rating 15 A
Material Data
Panel Dimension (H/W/D) 1956x992x45 mm
Weight 23 kg
Cell Type Monocrystalline
Cell Size 156×156 mm
Cell Number 72
Junction Box Diodes 3
Cable Crossection 4 mm2
Cable Length 900 mm

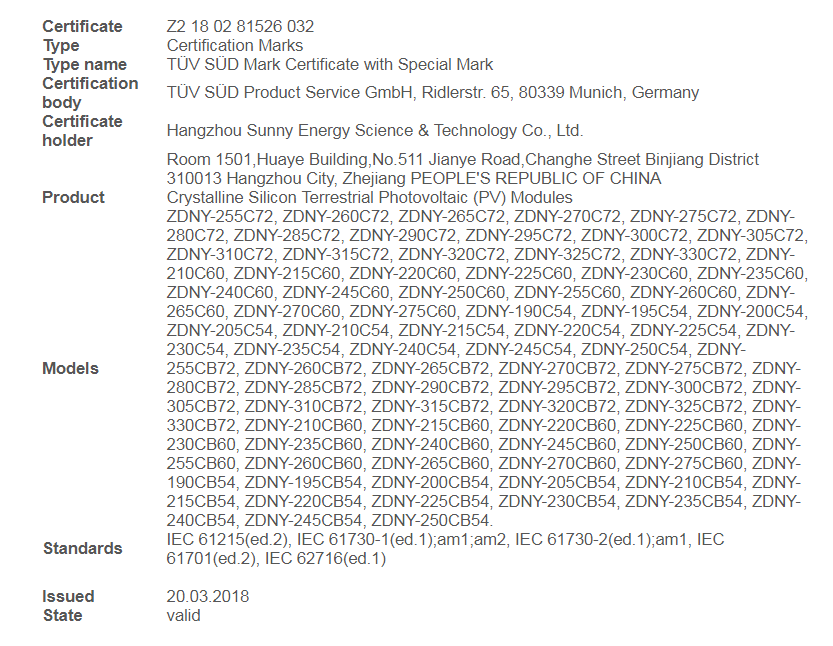

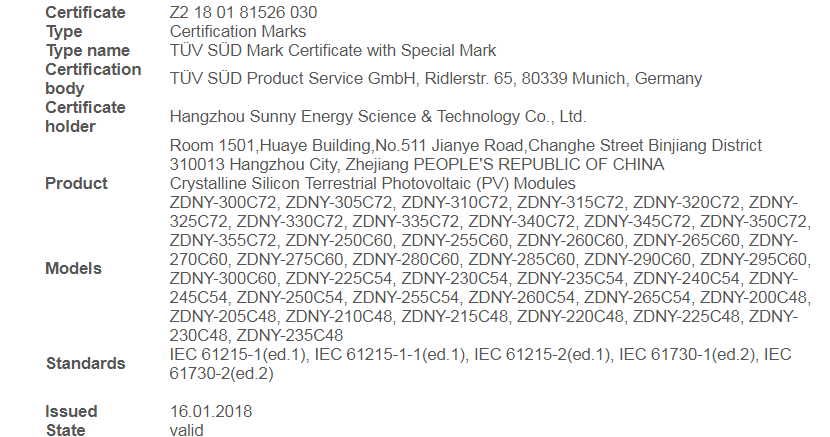

Certifications
